RV Gearbox Oil Seals

RV gearboxes serve as the core components of heavy-duty joints in robotic arms, waists, and shoulders. Oil seals are primarily used for rotating dynamic sealing on the output and input shafts to prevent gear oil leakage and block the ingress of dust and moisture. They must simultaneously meet the following requirements: heavy-duty operation, low-speed high-torque oscillation, oil leakage prevention, strong dust resistance, and long service life.

Most Common Oil Seal Structures for RV Gearboxes

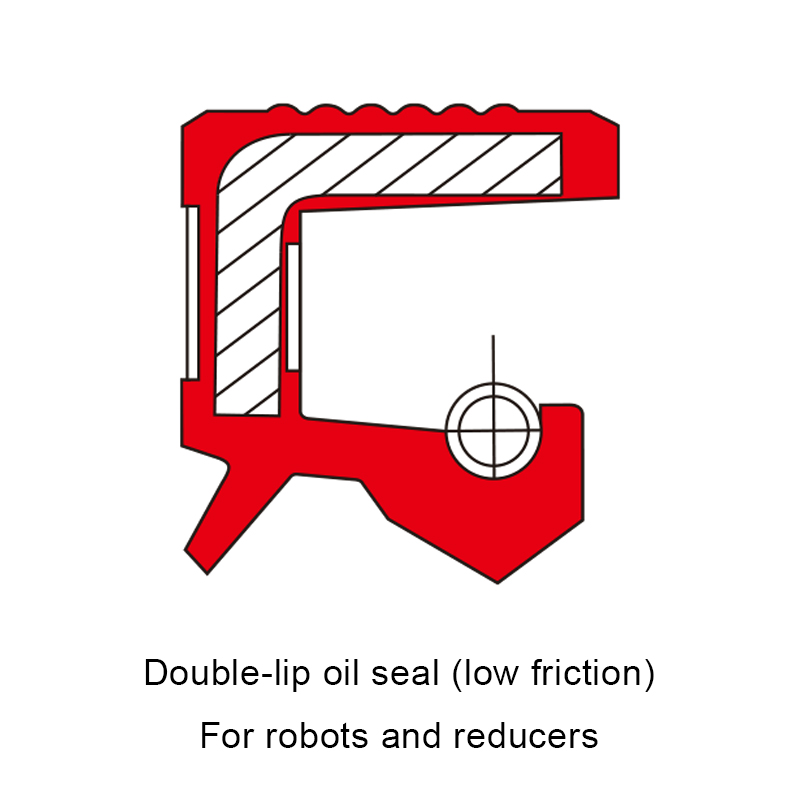

1. Low-Torque Double-Lip Oil Seal (Primary Seal, 90% of Applications)

Structure: Primary lip for oil sealing + secondary lip for dust protection, with a low-tension spring

Features:

Low startup torque, does not increase motor load

Suitable for low-speed, high-frequency, and small-angle oscillation

Prevents grease leakage and the ingress of dust/moisture

Applications: Universal seal for input shafts, output shafts, and intermediate shafts

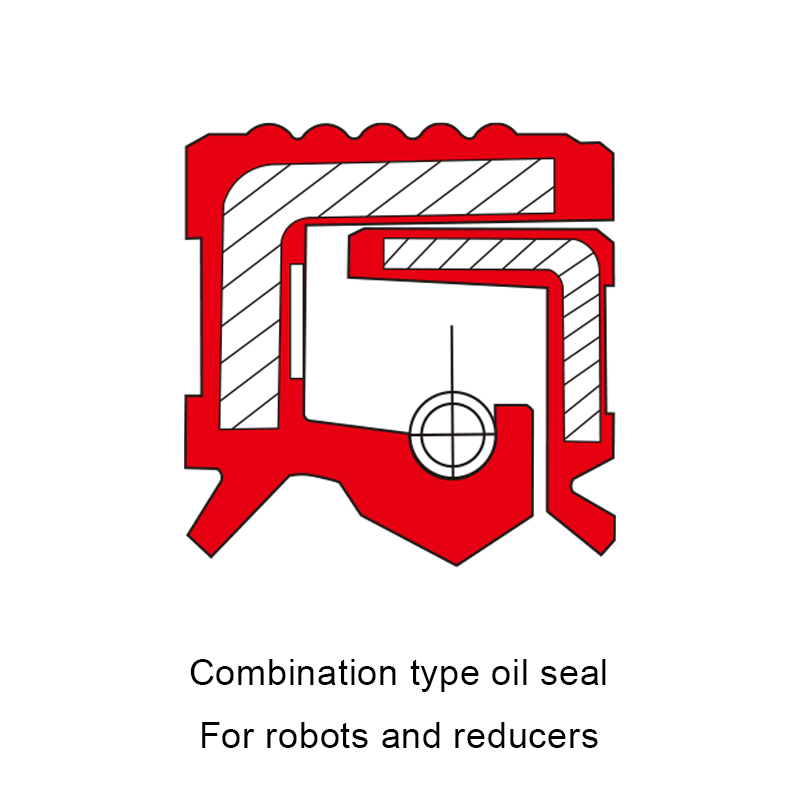

2. Combined Seals (Heavy-Duty/Harsh Environments)

Structure: Double-lip oil seal + assembly kit/dust cover/wear ring

Features:

Industrial-grade protection; resistant to metal shavings, cutting fluid, and oil contamination

Service life increased by over 50% compared to single oil seals

Applications: Welding, material handling, and painting robots

3. Ultra-thin Micro Oil Seals (Small/Lightweight RV)

Ultra-thin cross-section suitable for: Collaborative robots and humanoid robots with compact RV joints

Common Causes of Failure

Excessive torque on standard oil seals leads to reduced robot precision and overheating.

Single-lip oil seals offer poor dust protection, resulting in rapid wear once dust enters.

Material incompatibility causes the seal lip to swell or harden due to the lubricant.

Under oscillating conditions, the lip of a standard oil seal wears out rapidly and fails.

Maintenance Recommendations

Inspect the oil seals after the new reducer has operated for 1,000 hours, followed by quarterly or semi-annual inspections;

Replacement Interval: 1–2 years under normal conditions; 6–12 months recommended for high-frequency robotic applications;

Never mix lubricants of different brands or types to prevent seal swelling.

※UKS oil seals support full-range custom designs. We tailor solutions based on equipment structure, operating conditions, and installation space to resolve issues such as standard part mismatches, seal failure, and installation constraints.
